INAV Tracking

This Documentation is all operated on INAV 9.0.0 – 9.0.1

Note: this is intended for classroom studies

Camera used CVBS 5.8g Analog or ESP32 Camera 2.4g

Note: camera is mounted 45 degrees facing down for this documentation

Require to install Python and CV2 OpenCV 4.11.0.86

APP Installation TargetCV1 29-8-2026Download
APP Installation TargetCV5-31-8-2026Download
MIL CSRT KCF modules for tracking important installation – Contrib modules installerDownload

INAV configuration setup

to interface with INAV you need to override the MSP input which your computer send via serial

To override channels 7 and 8 using MSP commands in INAV, you need to calculate the correct decimal bitmask value for the msp_override_channels CLI setting. INAV uses a 16-bit integer bitmask where each bit represents a specific RC channel (Bit 0 = Channel 1, Bit 1 = Channel 2, etc.).

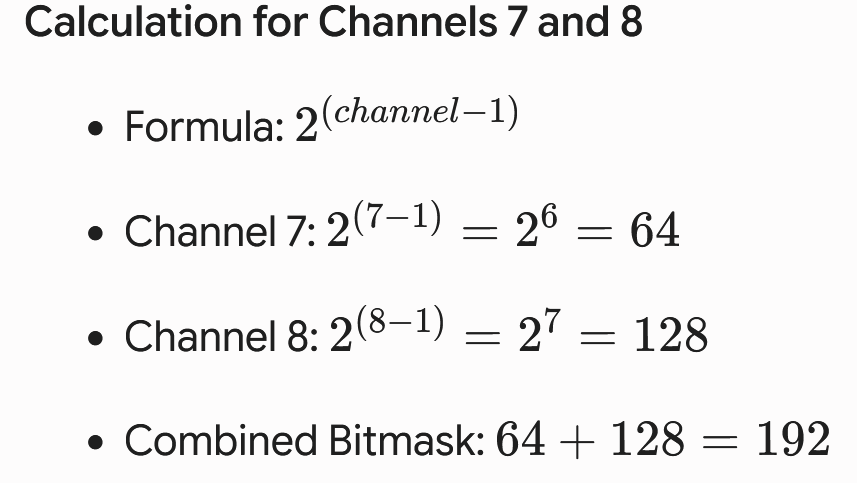

EXAMPLE: Calculation for Channels 7 and 8

Enter the following command to set the override mask:

set msp_override_channels = 192

  1. Type save and press Enter to reboot the flight controller.
  2. Ensure you have mapped and configured the MSP Override flight mode to an auxiliary switch on your physical transmitter so you can toggle the override state safely in flight.

Note: For MSP override to function properly, your companion computer or external device must continuously stream MSP_SET_RAW_RC data at a rate of 5Hz or higher.

EXAMPLE: Calculation for Channels 1,2,3,4

Enter the following command to set the override mask:

set msp_override_channels = 11

  1. Type save and press Enter to reboot the flight controller.
  2. Ensure you have mapped and configured the MSP Override flight mode to an auxiliary switch on your physical transmitter so you can toggle the override state safely in flight.

Note: For MSP override to function properly, your companion computer or external device must continuously stream MSP_SET_RAW_RC data at a rate of 5Hz or higher.

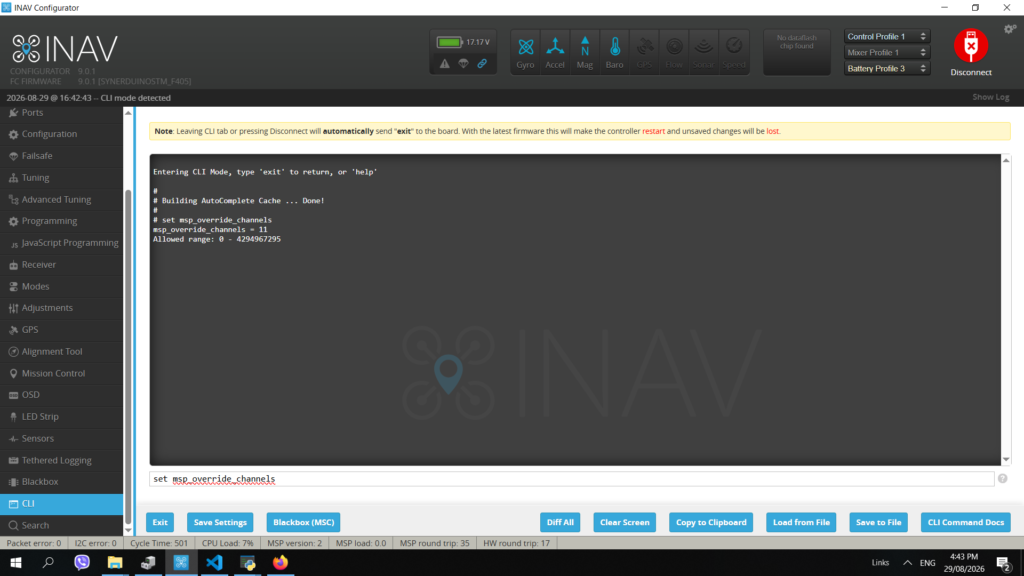

CLI setup

msp_override_channels inav override channel 2 and 4 Pitch and Yaw

set msp_override_channels = 6

msp_override_channels inav override channel 7 and 8

set msp_override_channels = 192

msp_override_channels inav override channel 1,2,3,4 Roll , Pitch, Throttle ,Yaw

set msp_override_channels = 15

msp_override_channels inav override channel 1,2,4 Roll , Pitch,Yaw

set msp_override_channels = 11

msp_override_channels inav override channel 7 , 8 , 9, 10

set msp_override_channels = 960

msp_override_channels inav override channel 1, 2, 4, 7 , 8 , 9, 10

set msp_override_channels = 971

Setup modes

on the modes tab look for Misc modes , we recommend to set a 3 position switch one to arm the tracker and another to take over RC MSP

the code set is MainTargetCV1 on to Channel 5 => Equal or Grater than 1500 to lock to object

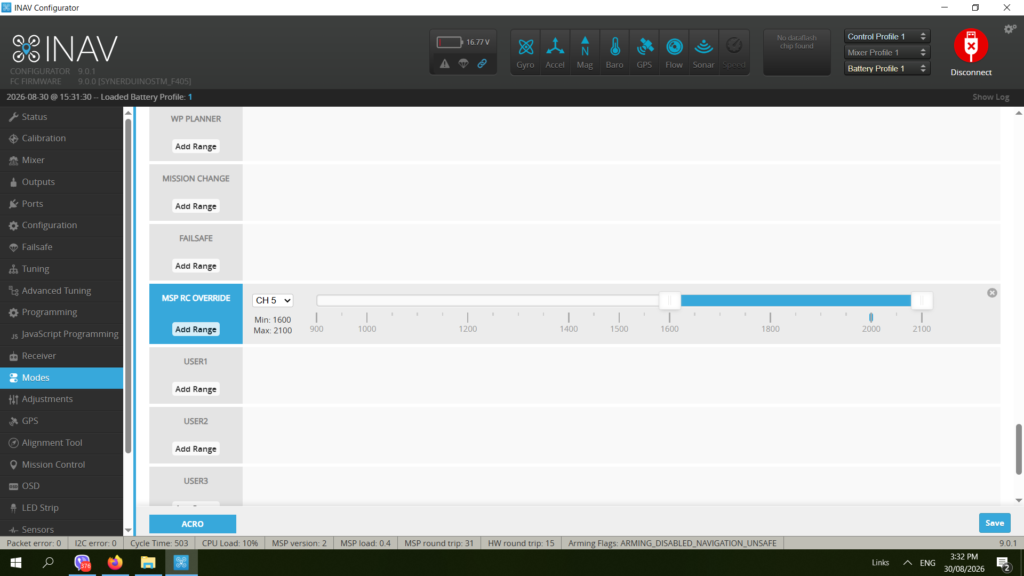

on INAV Misc modes MSP RC override is set to 2000

this to ensure that ones lock is confirm on position 2 switch then Position 3 switch transfer control to computer from pilot

Other modes are active on other channels to support the AI systems

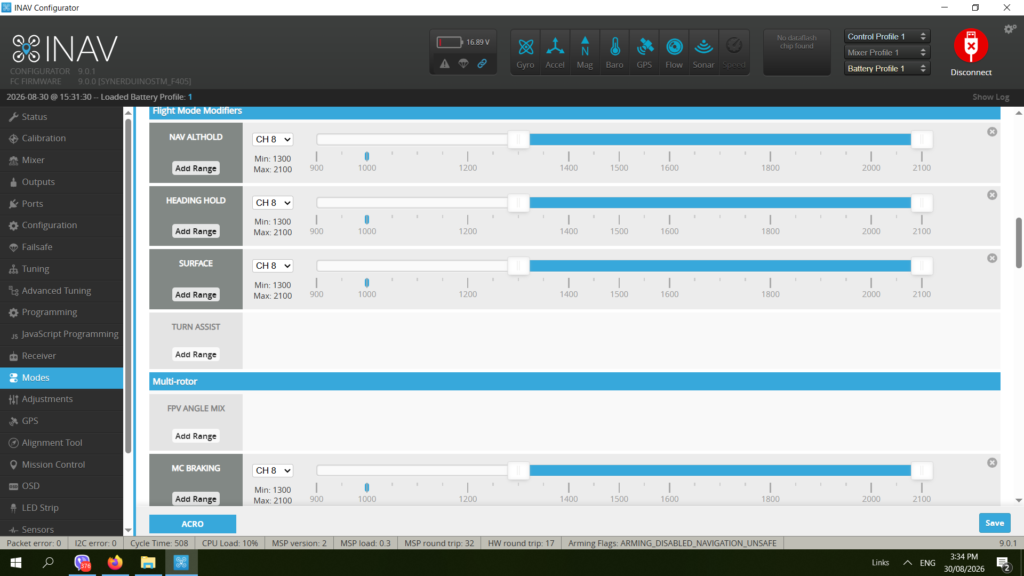

NAV Alt Hold – hold altitude Ch8

Heading Hold – Ch8

Surface – Ch8 (Optical flow hardware require)

MC Braking – 8Ch (you need to stop somehow when object is near)

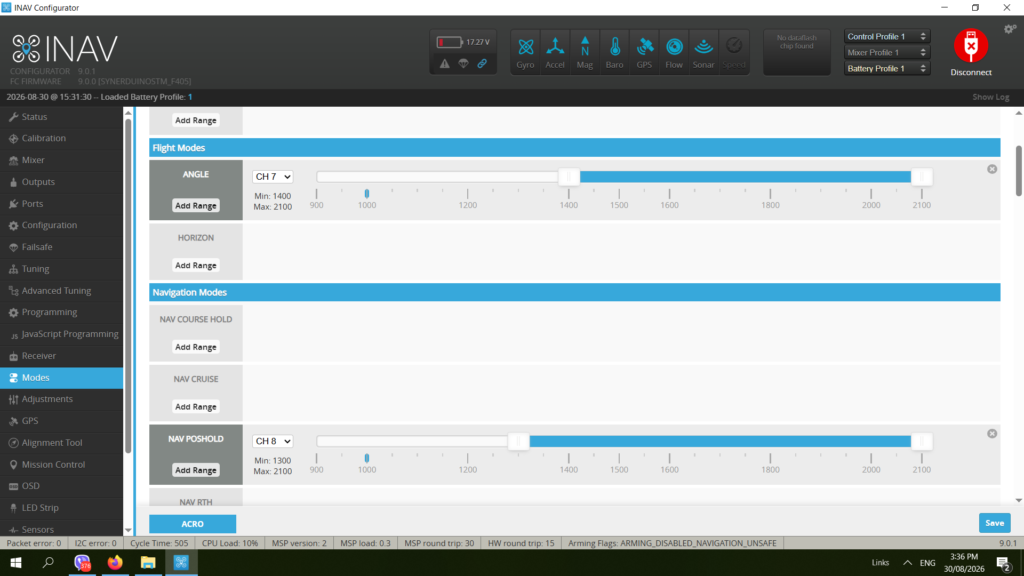

Angle – Ch7 Keeps Drone Level – this also can be same mode as Arming .

Nav Position – Ch8 Hold drone in place works both in GPS and Optical mode

Operation

input your camera source

  1. install python requirements for the application
  2. on the MainTargetCV application update datas folder to your corresponding Baud and Comport number where your drone’s telemetry (Bluetooth SPP) is assign to
  3. the MainTargetCV1.py (Edit thru IDE ) Video = cv2.VideoCapture (1)
  4. for webcam or OTG cam # change the number your camera source 0 , 1 , 2
  5. for ESP32 Camera IP stream base off your drone’s Camera connection.
    • for IPC camera setting page http://192.168.1.1
    • for IPC camera streaming page http://192.168.1.1:81/stream? (this is what to put on your video.txt)

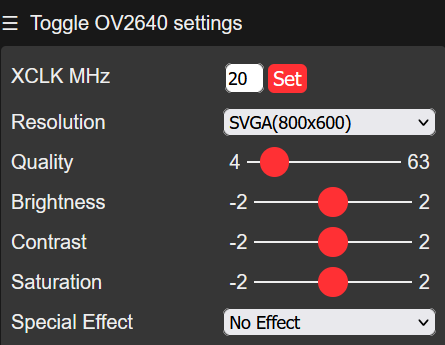

  6. for IPC ESP32 Camera XVGA or HD Resolution is a good balance of latency and detail

select your Tracker type

Overview of MIL, KCF, and CSRT

  • MIL (Multiple Instance Learning): Uses machine learning by evaluating a neighborhood around the object’s current location rather than just a single positive sample. It handles moderate movement well, but it is slower than KCF and struggles to recover from full occlusion.
  • KCF (Kernelized Correlation Filters): Built on a foundation of correlation filters, operating significantly faster than MIL by exploiting properties of circulant matrices. It is ideal for high-speed, stable, single-object scenes, though it does not handle full occlusion or rapid shape deformations well.
  • CSRT (Discriminative Correlation Filter with Channel and Spatial Reliability): Uses spatial reliability maps to adjust the filter support to the object, making it effective for non-rectangular regions, scale changes, and rotations. It is more accurate and robust than KCF, but runs at a lower frame rate.

after Saving you can run the app it should automatically connect the Drone’s bluetooth telemetry and camera if done correctly

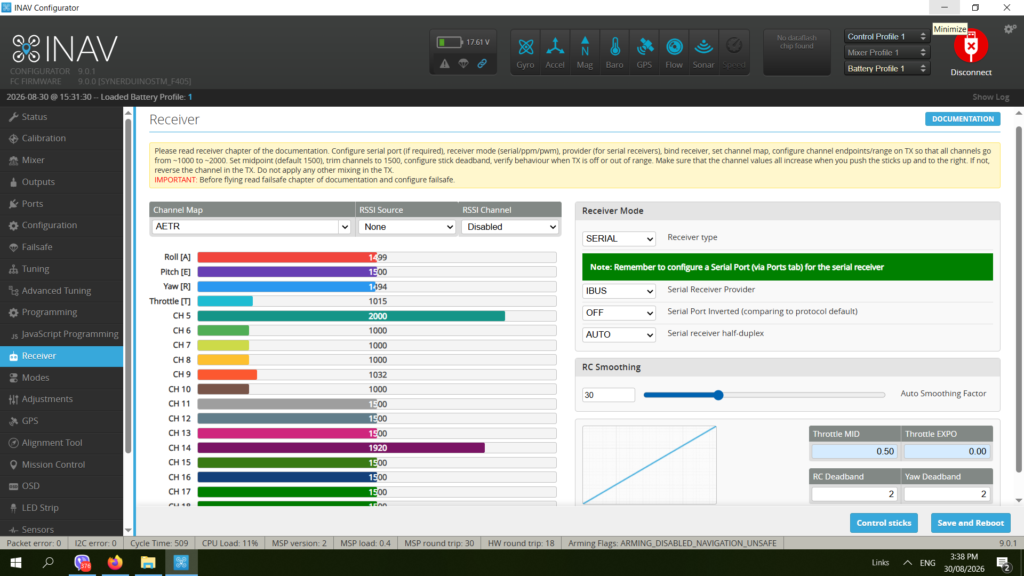

at this point you can plug a physical USB to the flight controller and go to receiver to see if the controls are responding to the remote

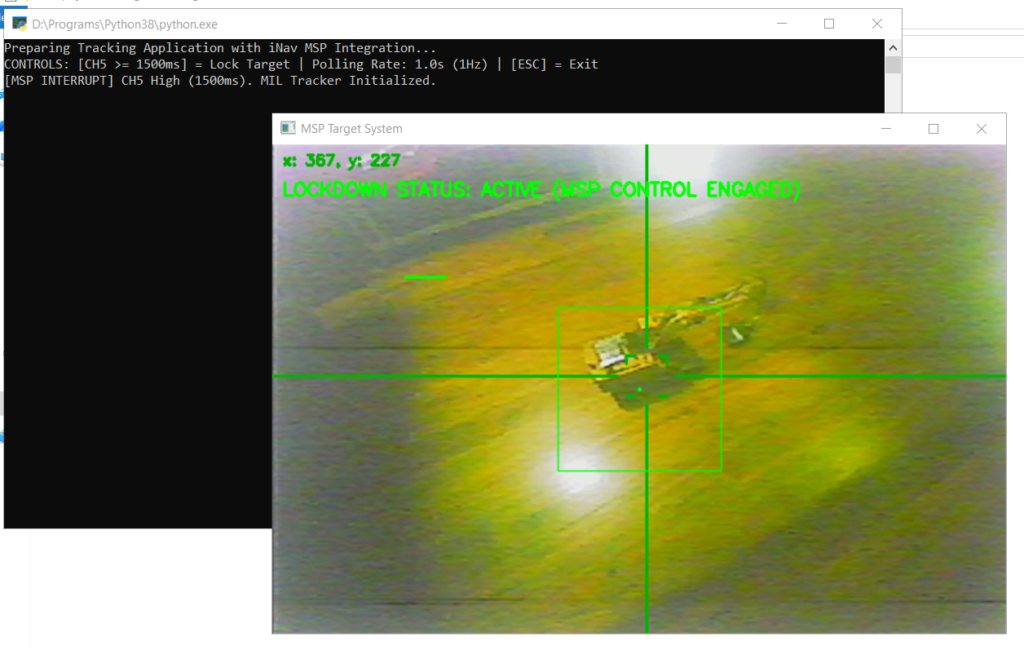

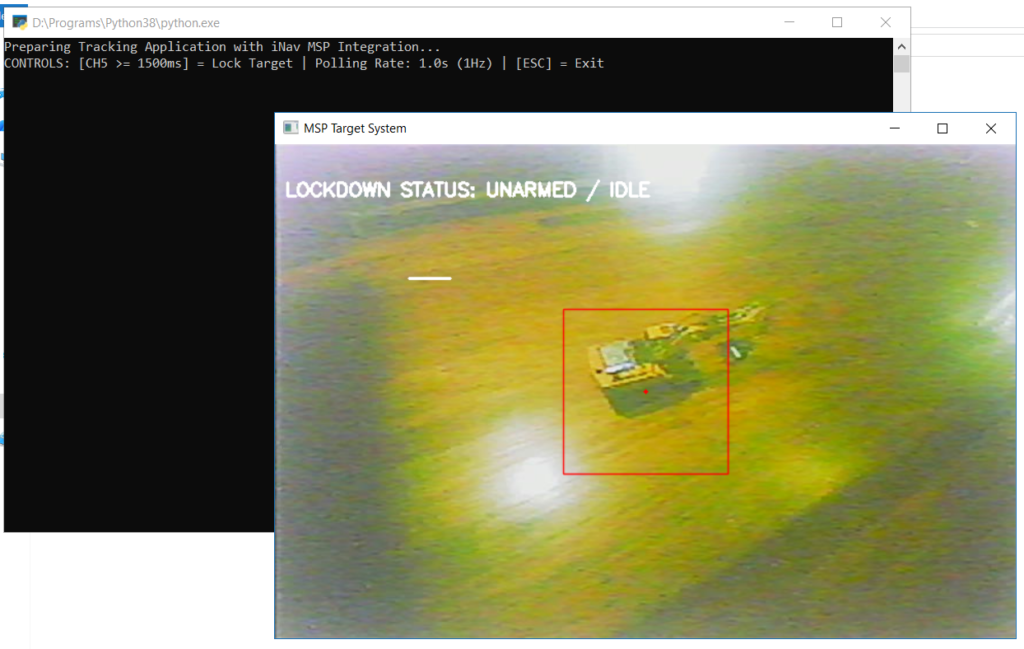

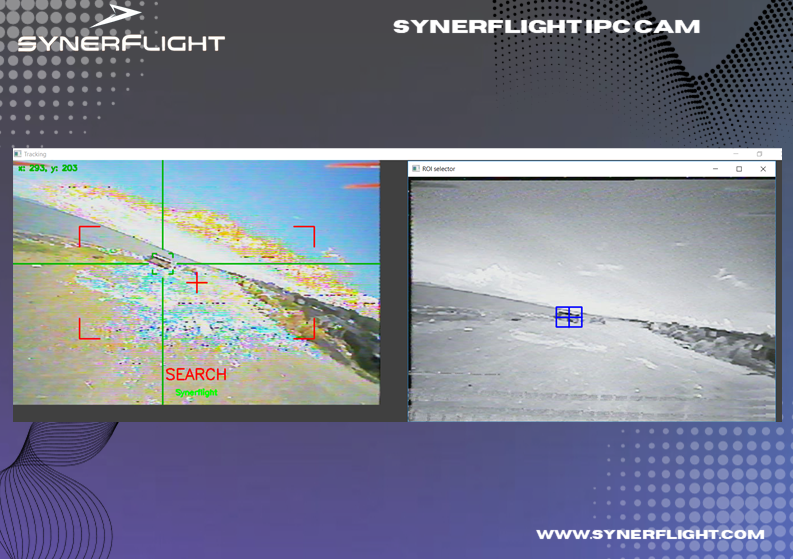

on app run you would be able to see an unarmed lockdown status

when the Ch 5 is place on 2nd position

Once confirm a Lock then check your Receiver to see if Yaw and Pitch is responding to the input

take care on your first flight be ready to turn channel 5 off when drone is not behaving correctly and go thru the codes and settings again

RC expo rate can play a part is drone responds behavior
