Synerduino Arduino

Synerduino Arduino

Also known as Synerduino Arduino Classic

is a 328P UNO and  2560 Mega  compatible shield allowing users to program with an Arduino IDE configuring thru the Sketch .ino files

this Shield board is design on top of the widely Popular Arduino R3 AVR  ATMEL 8Bit processor  in the Academe Environment.

Suitable for Academe STEM and Research Application for those starting out from an Arduino Environment basic functionality easy to understand.



FEATURE
  • Arduino 2560R3 AVR 8bit Compatible platform and footprint
  • 4 Serial connections
  • PWM , PPM & SBUS compatible Radio Receiver
  • Arduino foot print expansion
  • uses the FlywiiGUI application
  • GPS Mission telemetry capable added M9 & M10 NMEA GPS compatibility
SUPPORT
  • Windows: FlywiiGUI application
  • Firmware: Multiwii 2020-2024
  • Android: Mission Planer for INAV and EZGUI
  • Linux: MWCTools
  • Mission Planning capable
  • added M9 & M10 NMEA GPS compatibility
  • Supports Multirotor , Fixwings , Surface vehicle types
PACKAGE
  • 1x Synerduino Arduino shield
  • 1x GPS module
  • 1x Bluetooth module
  • 1 x XT60 Plug set
  • 5 x PWM RC connectors
  • 1 x 4pin duopoint plug
REQUIRMENT
  • Arduino Mega 2560 R3
  • 6Ch Radio
  • PWM. PPM, Sbus Receiver
  • 3s Battery 1300mah – 2200mah
  • Lipo Balance Charger
  • Battery voltage buzzer

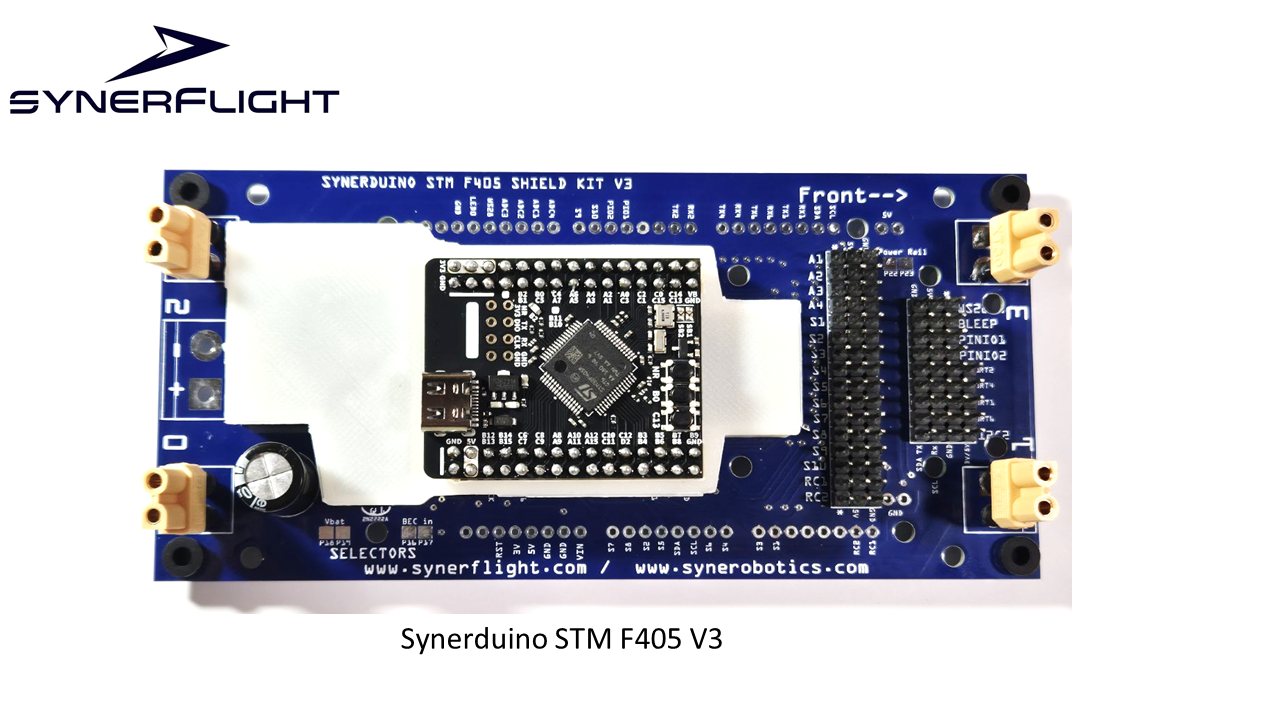

Synerduino STM



Synerduino STM

the Synerduino STM Family of 32 bit Shields Brings modern drone feature in a Development DIY project friendly form

Package kits suitable for Research and Light industry use. for those who knew the basics and needing for advance applications.



FEATURE
  • 32Bit  board compatible with INAV firmware
  • ADC multi-function pins
  • Arduino Footprint for expansion
  •  PWM output
  • GPS mission Capable
  • Programmable Logic implementation
  • Receiver Radio compatible (Sbus, iBus, SRXL2, SUMD, FPort)
SUPPORT
  • Firmware: INAV, Ardupilot application
  • Android: Qground,Mission Planer
  • Linux: MWCTools , INAV
  • Mission Planning capable
  • added M9 & M10 NMEA GPS compatibility
  • Supports Multirotor , Fixwings , Surface vehicle types
PACKAGE
  • 1 x Synerduino STM shield
  • 1 x STM32 Processor Board
  • 2 x  4pin duopoint PWM RC Connectors
  • 1 x GPS
  • 1 x Bluetooth
  • 1 x XT60 Plug set
REQUIRMENT
  • 6Ch Radio
  • Sbus or iBus Receiver
  • 3s Battery 1300mah – 2200mah
  • Lipo Balance Charger
  • Battery voltage buzzer





Drone Kits

Drone Kits



Synerduino Multirotor 250 V1

Design to be compatible to the Synerduino Shield (Required)

250mm Multirotor Kit provide an entry level set for Project research into Aerial Drone application

  • 3 piece Plastic Airframe
  • Set 5045 Propeller
  • Set Motors and ESCs

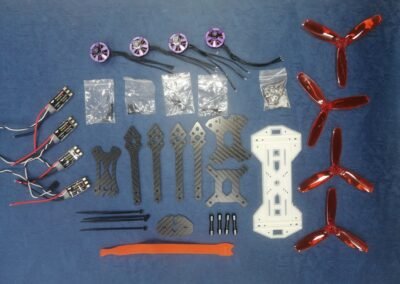

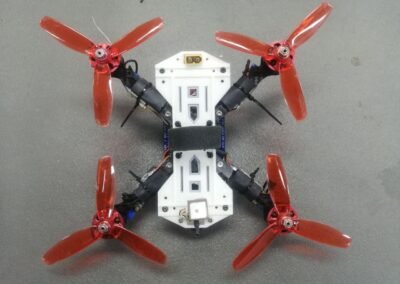

Synerduino Multirotor 220 V2 – 5″



220mm Multirotor Kit Carbonfiber Frame with Adapter

  • 9 piece Carbonfiber Airframe w/ 30.5 x 30.5 Mounting
  • 1 piece Plastic Adapter
  • Set 5045 Propeller
  • Set Motors and ESCs

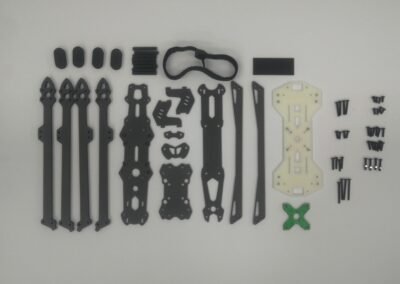

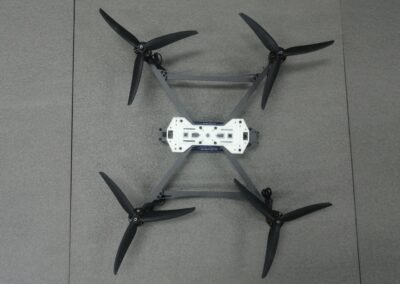

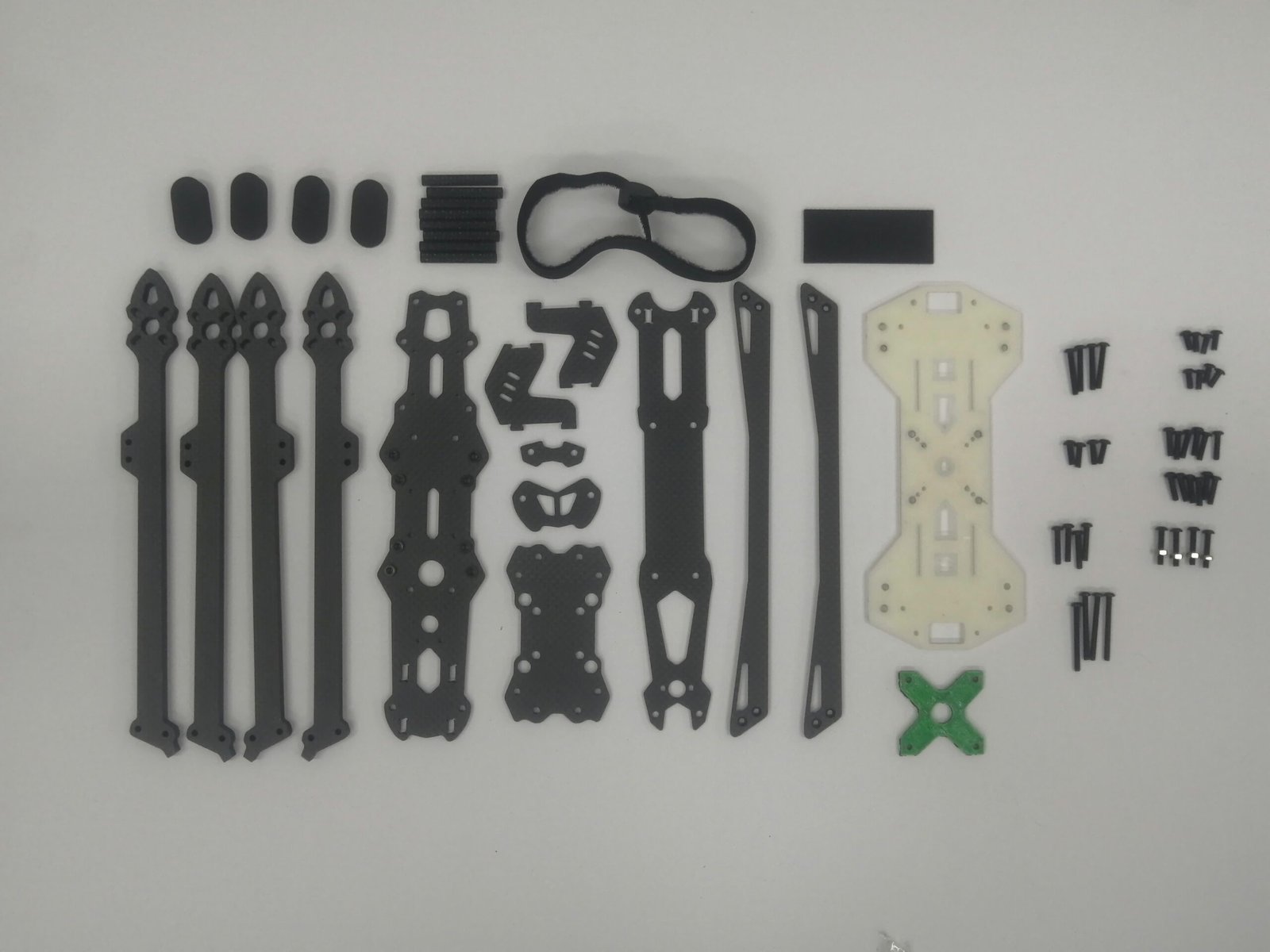

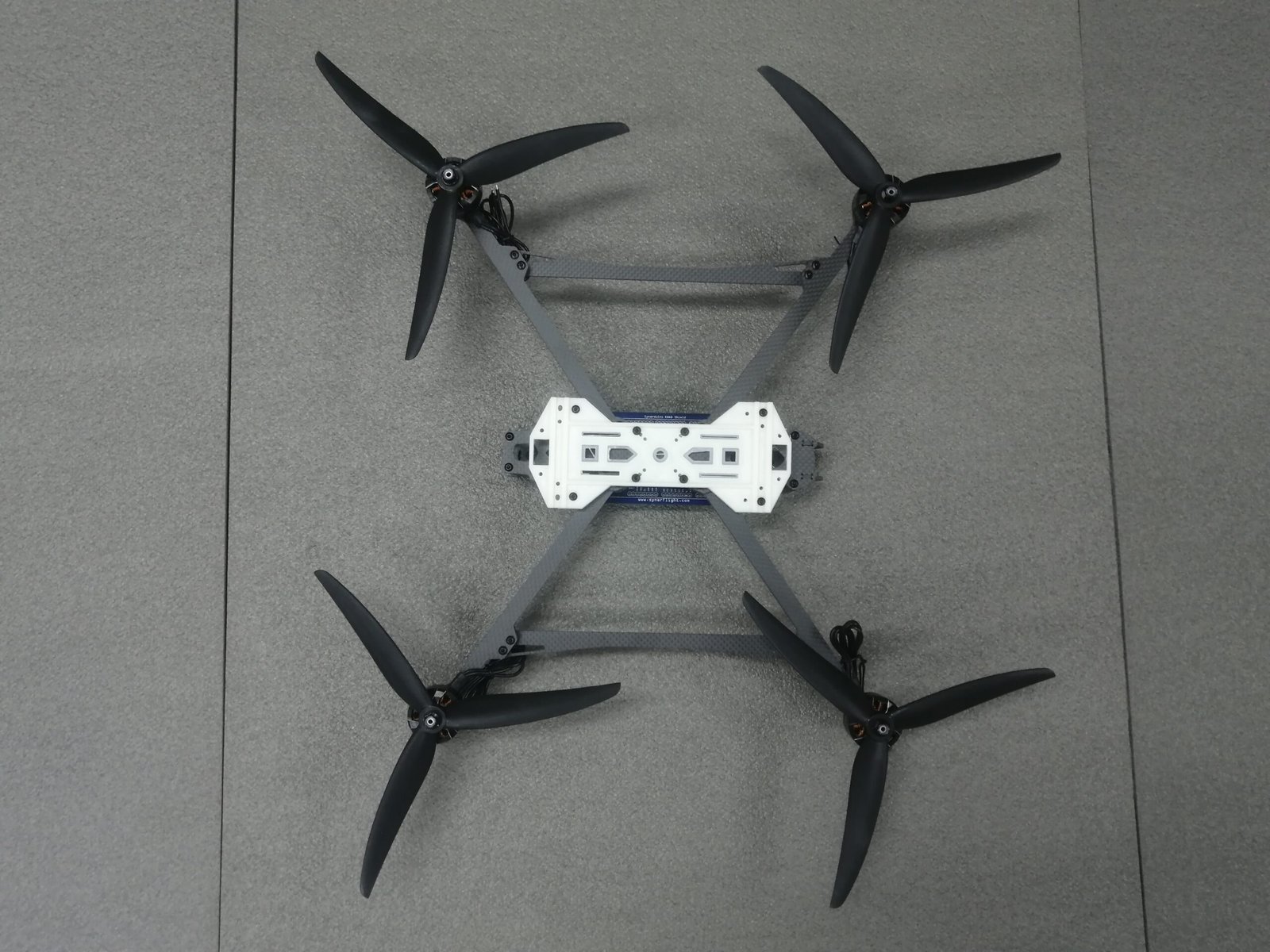

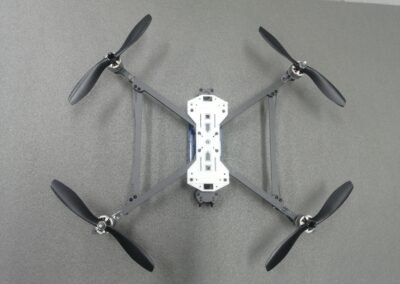

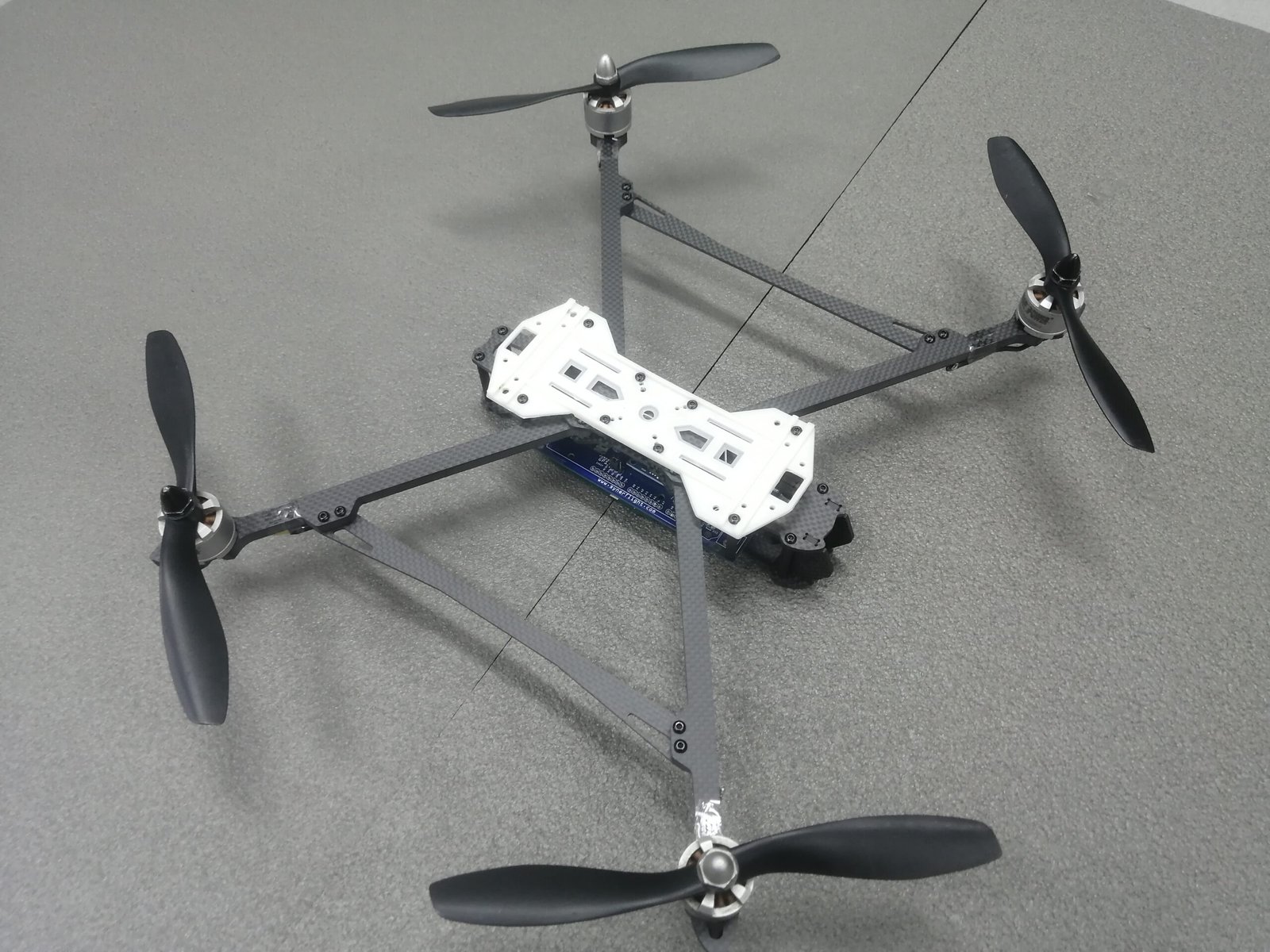

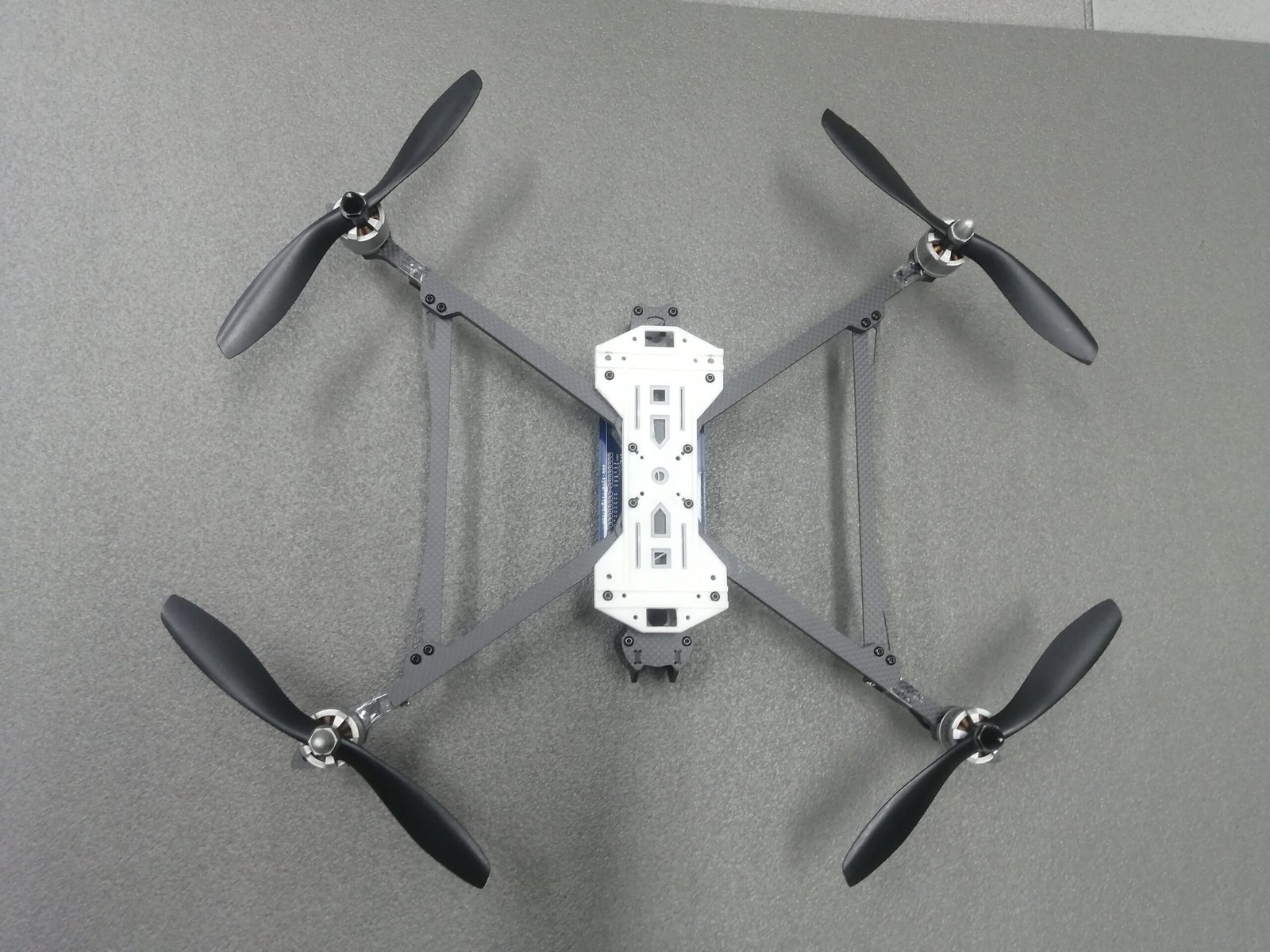

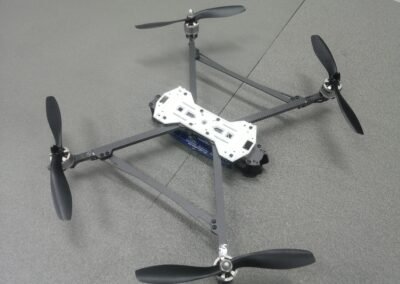

Synerduino Multirotor 420 V2 – 10″

Synerduino Multirotor 420 V2 – 10″

420mm Multirotor Kit Carbonfiber Frame with Adapter

  • 9 piece Carbonfiber Airframe w/ 30.5 x 30.5 Mounting
  • 1 piece Plastic Adapter
  • Set 9045 Propeller
  • Set Motors and ESCs





TD Systems

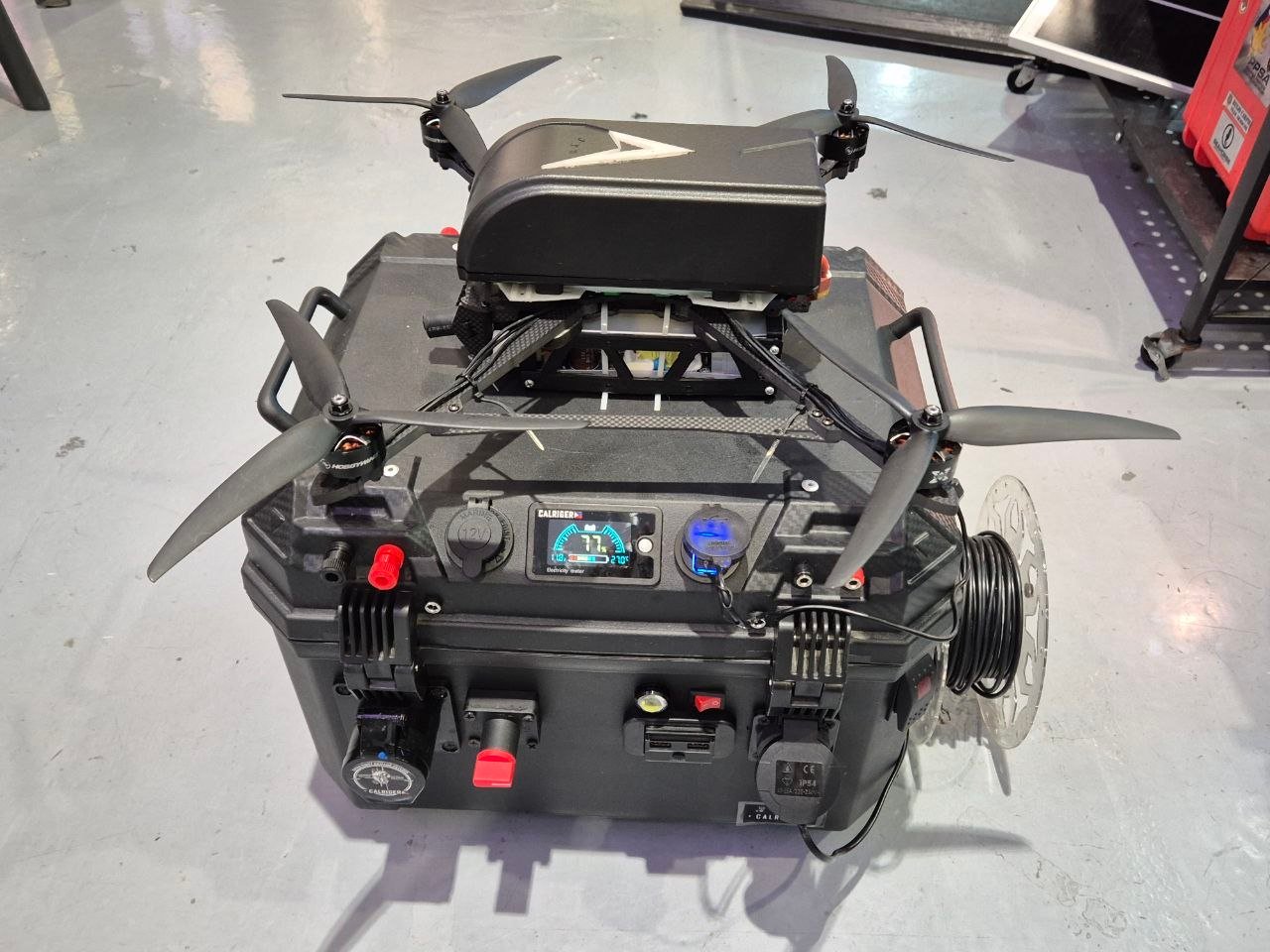

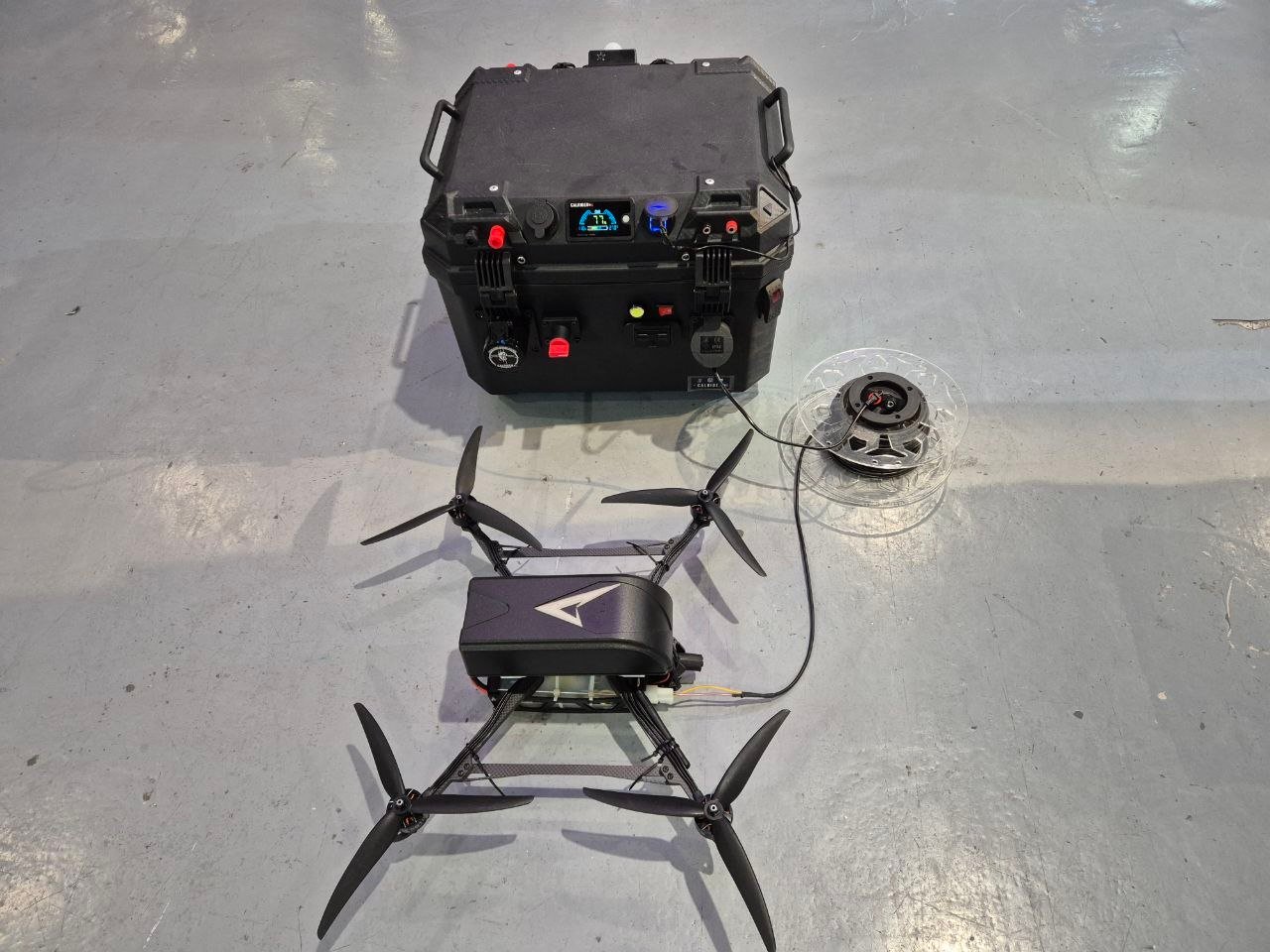

Tethered drones

the use for  long-duration aerial surveillance, monitoring, and communication due to their continuous power supply, which allows for Long endurance flight time.



Power

3S-4S power system integration

500w – 800w



Cable

25m – 30m

A. Power Only

B . Power and Data
